MUSE 210L
The MUSE 210L is a passive bi-amplified line array module designed for professional sound reinforcement. Ideal for concert tours, theaters, and outdoor festivals, it delivers consistent phase-coherent performance and modular scalability. The enclosure features two custom 10” long-excursion woofers and two 1” B&C compression drivers mounted on a proprietary waveguide, ensuring a 90° horizontal dispersion.
Key Features
- Precision Coverage: tightly controlled vertical projection with splay angles adjustable in 1° increments.
- Integrated Rigging: Features a fully integrated 4-point rigging system for fast, tool-free vertical array assembly.
- Tour-Grade Construction: Built from 15mm birch plywood with a scratch-resistant finish and ergonomic die-cast aluminum handles.

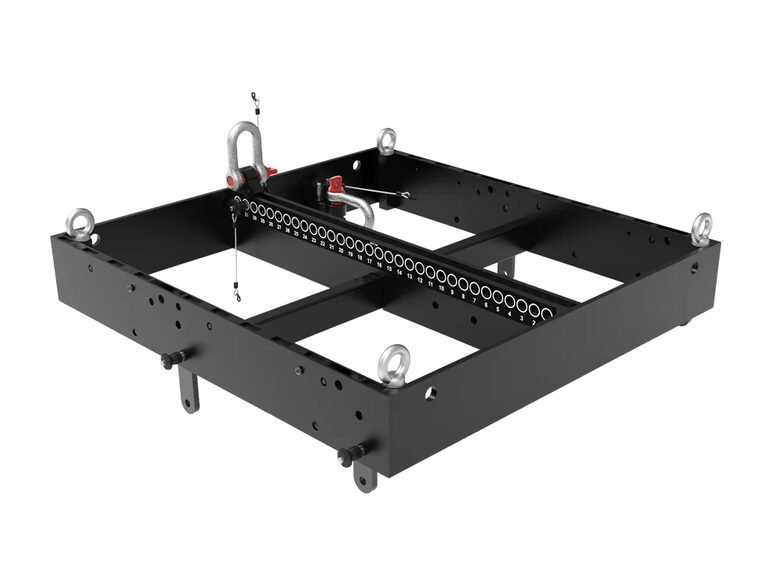

- Scalable Design: Supports vertical clusters of up to 16 modules using the MS-F 210 flybar.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Code | 39457 |
| Configuration | 2-Way Passive Reflex Line Array |
| Recommended Amplifier | 800W RMS (LF) / 200W RMS (HF) |
| Power (Long/Short Term) | LF: 400W/1600W | HF: 100W/400W |
| Nominal Impedance | 16 Ohm (LF) / 32 Ohm (HF) |
| Frequency Response | 60Hz - 18kHz (-6dB) |
